Fullstack Development

Database Design

Content

• Database ranking
• SQL database
• NoSQL database
• Schema patterns
• Data integrity
• Common database patterns
• Index and Unique ID
• Database encryption

Database Engine Ranking

• Database engine
  • DBMS (Database Management System)
• A brief history of databases
• DB-Engines Ranking

SQL Database

• Relational database
• Organize data into tables of related information
• Utilize Structured Query Language (SQL) for managing/manipulating data

SQL Database

Popular RDBMS

• Open source: MySQL, PostgreSQL
• Commercial: Oracle Database, Microsoft SQL Server, IBM DB2
• RDBMS Ranking

SQL

The standard language used to interact with SQL databases

• Data Definition Language (DDL)
  • e.g., CREATE TABLE, ALTER TABLE, DROP TABLE
• Data Manipulation Language (DML)
  • e.g., INSERT, UPDATE, DELETE, SELECT
• Data Control Language (DCL)
  • e.g., GRANT, REVOKE

Properties of DB Transaction

• An acronym that stands for ...
  • Atomicity
  • Consistency
  • Isolation
  • Durability
• Ensure reliable transaction processing and data integrity
• What does ACID Means?

NoSQL

• non SQL or not only SQL
• Store data in a format other than relational tables
• Mostly designed for high scalability and availability

Types of NoSQL Database

• Document-oriented
• Column-oriented
• Graph-based
• Key-Value pair
• Time series

Document Database

• The data is stored in document
• Each document is typically a nested structure of keys and values
• Possible to retrieve only parts of a document
• The most commonly used data format are JSON, BSON, and XML
• e.g., MongoDB, Apache CouchDB

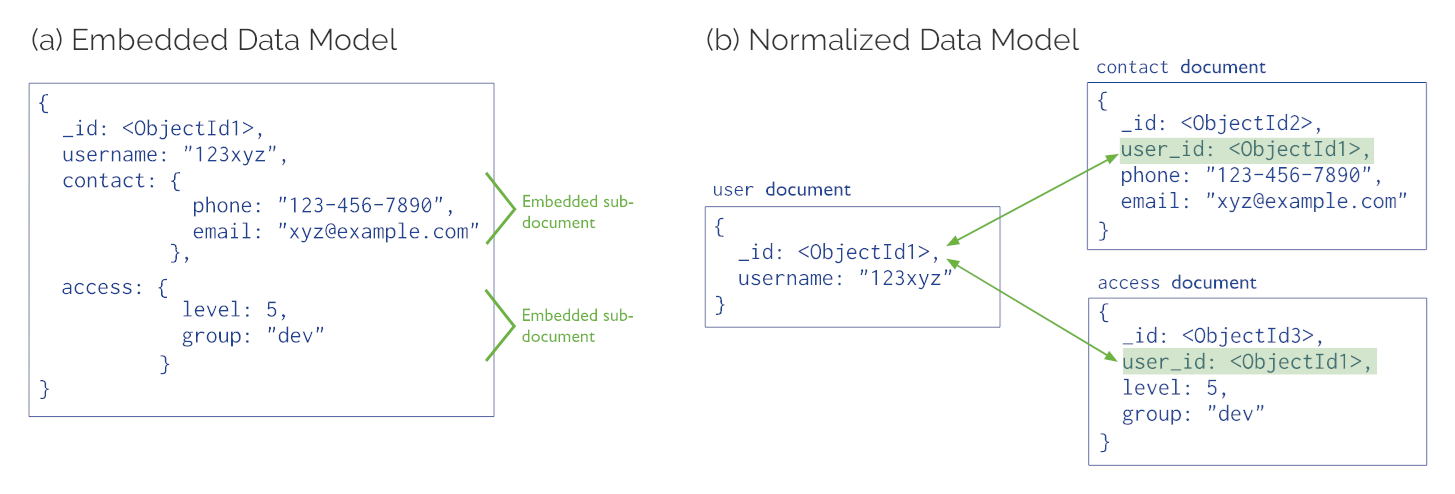

Document Database

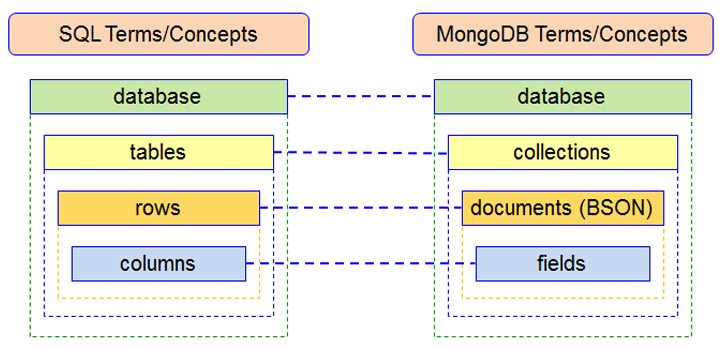

Document Database: Terminology

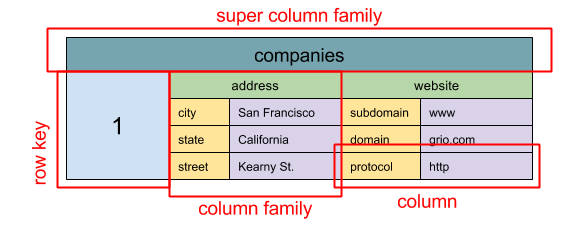

Wide Column Data Store

• Store data in columns rather than rows
• Able to store large amounts of data in a single column
• Allows to reduce disk resources and the time to retrieve information
• Highly scalable and flexible
• e.g., Apache Cassandra

Wide Column Data Store

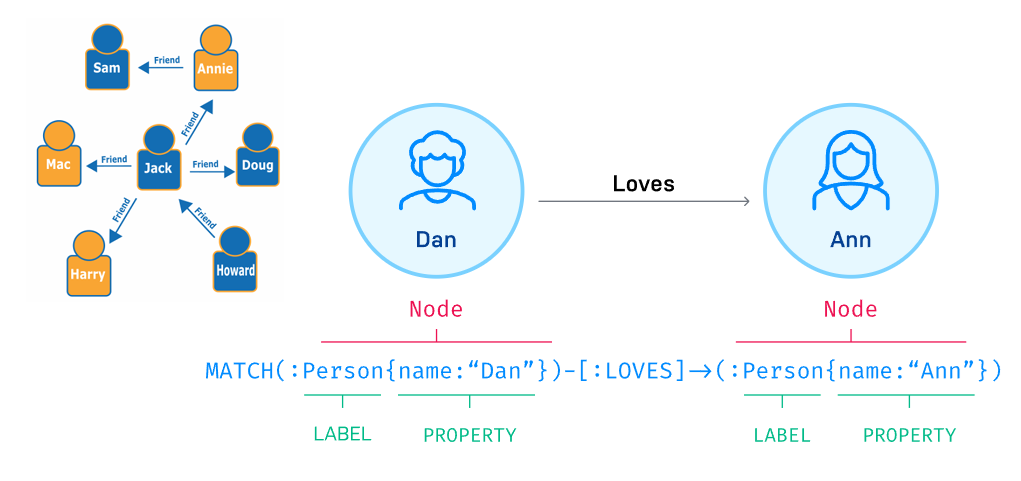

Graph Database

• Store and query highly connected data
• Data are modeled in the form of entities (nodes) and relationships (edges) between them
• Able to traverse from nodes or edges along defined relationship types until reaching some defined condition
  • Results : lists, maps, or graph traversal path
• e.g., Neo4j

Graph Database

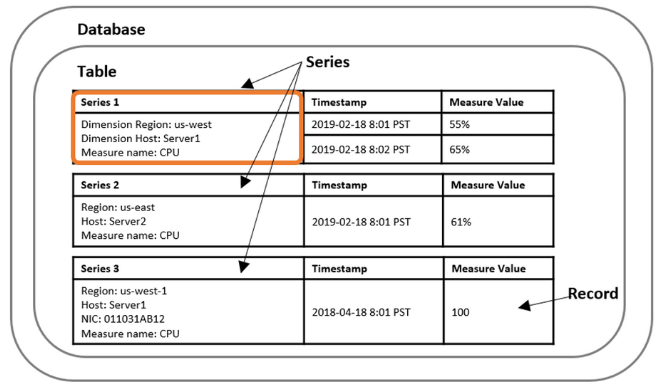

Time Series Database

• Store and retrieve data records that are sequenced by time
  • Sets of data points associated with timestamps and stored in time sequence order
• Easy to measure how data change over time (e.g., IoT, financial and logs)
• e.g., InfluxDB, Prometheus

Time Series Database

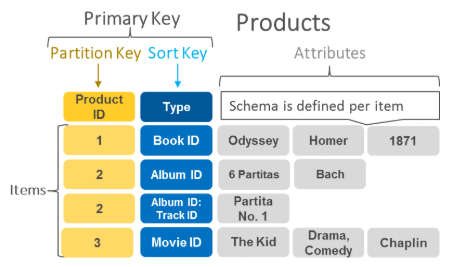

Key-value Data Store

• Stores data as a collection of key-value pairs
• Each data item is identified by a unique key
• The value can be anything (string, number, object, ...)
• e.g., Redis, Memcached

Key-value Data Store

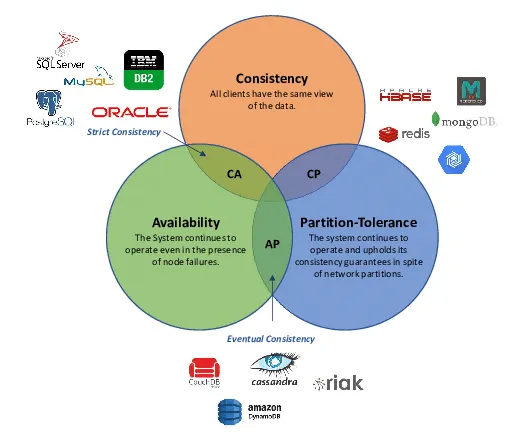

CAP Theorem

In a distributed data system, it is impossible to simultaneously guarantee all of these properties:

• C : Consistency
• A : Availability
• P : Partition Tolerance

Many NoSQL databases are AP systems

CAP Theorem

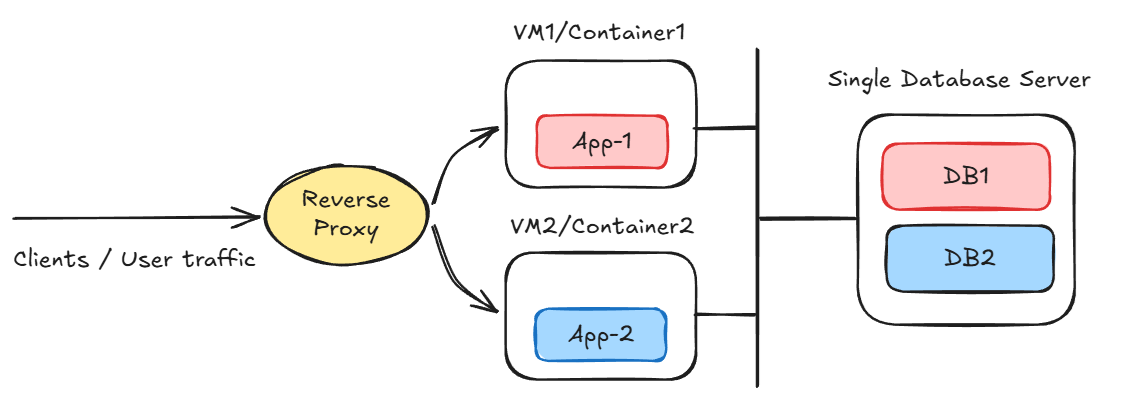

Standard for most small-to-medium setups

• Start with a single database server
  • Running multiple isolated databases
  • One database per application

Standard for most small-to-medium setups

• Move to a separated server when:
  • Suffers from performance degradation
  • Compliance laws
  • The app scales large enough

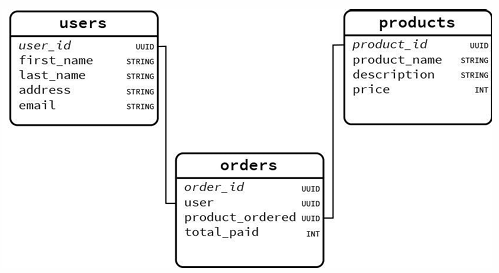

Database Schema

What is Database Schema?

• DB Schema defines how data is organized within the databasae
• Outlining how data is logically stored
• Key components:
  • Tables, Columns, Data types, Constraints
  • Primary / Foreign keys
  • Relationships (one-to-one, one-to-many, many-to-many)

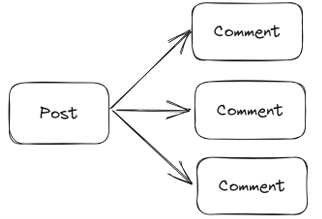

Relationship : One-to-Many

e.g., "Social media status post"

• A Post may have many comments
• A comment belongs to only one Post

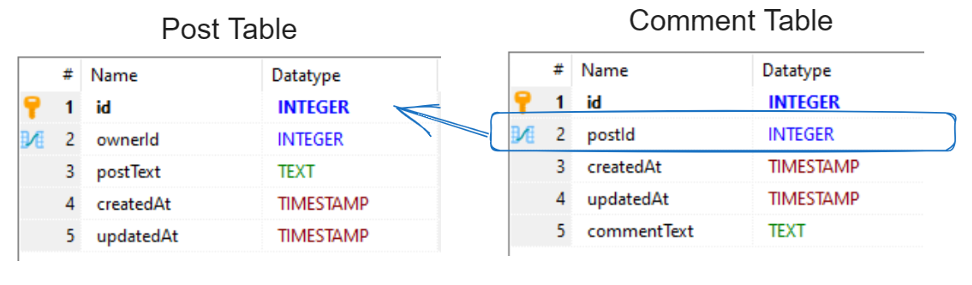

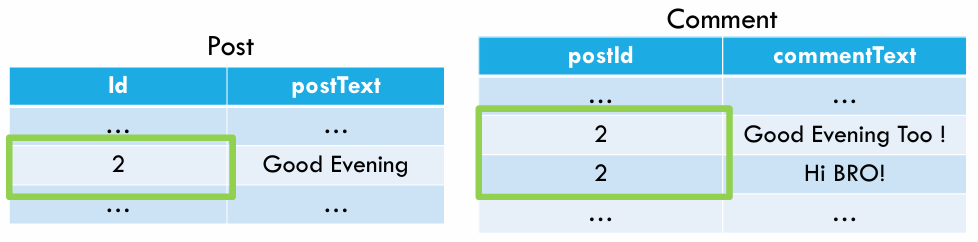

SQL Schema : One-to-Many

SQL Query : One-to-Many

e.g., "Get a Post together with its Comments"

SELECT * FROM Post JOIN Comment ON Post.Id = Comment.postId;

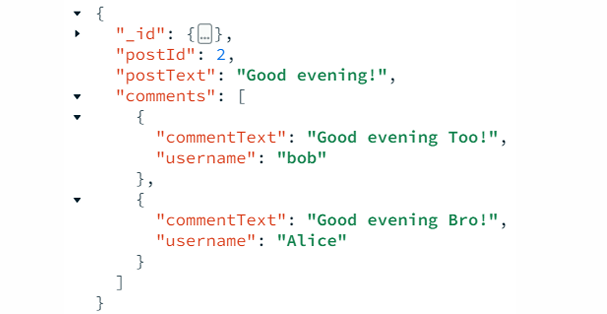

NoSQL Schema #1 : One-to-Many

Option 1 - Embedding Comments as array in Post document

• Assuming that a Post has less than a hundred Comments

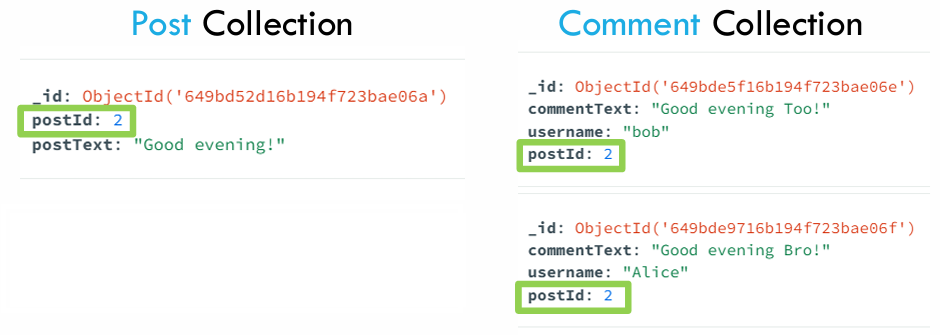

NoSQL Schema #2 : One-to-Many

Option 2 - Reference to other collections, avoiding massive array

• Reference each Comment to a single Post
• What if a Post may have thousands of Comments

Summary : One-to-Many

SQL

• Create two tables with a foreign key (representing a relationship)

NoSQL

• Embedding an array of objects in another type of object
• References multiple objects to another type of object

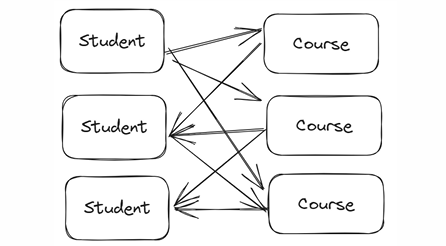

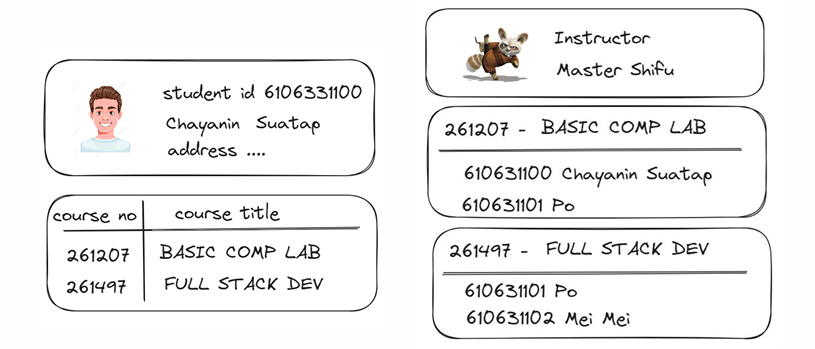

Relationship : Many-to-Many

e.g., "Students Enrollment"

• A Student may enroll in multiple Courses
• A Course is enrolled by many Students

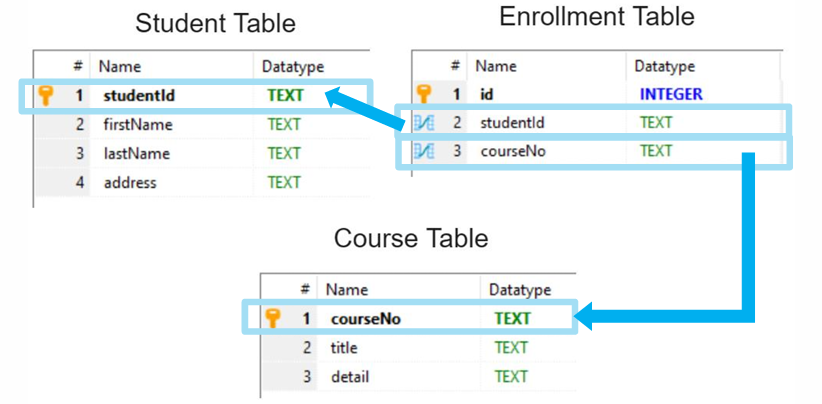

SQL Schema : Many-to-Many

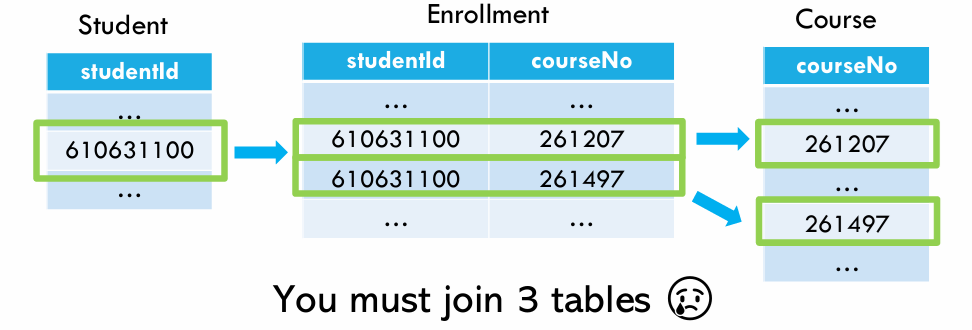

SQL Query : Many-to-Many

e.g., "Get all Courses title enrolled by a Student with specified studentId"

SQL Query : Many-to-Many

e.g., "Get all Courses title enrolled by a Student with specified studentId"

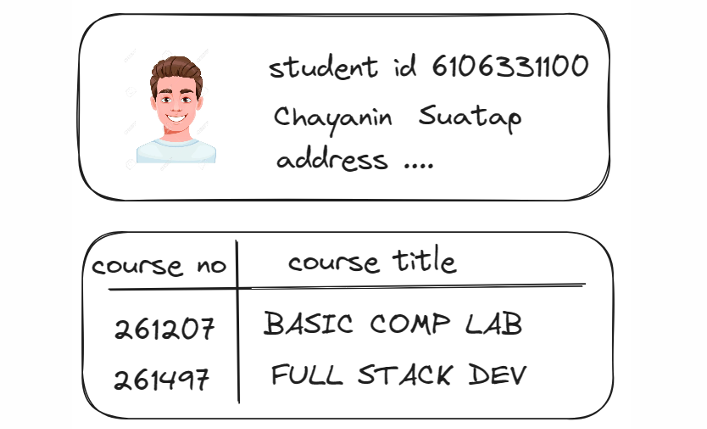

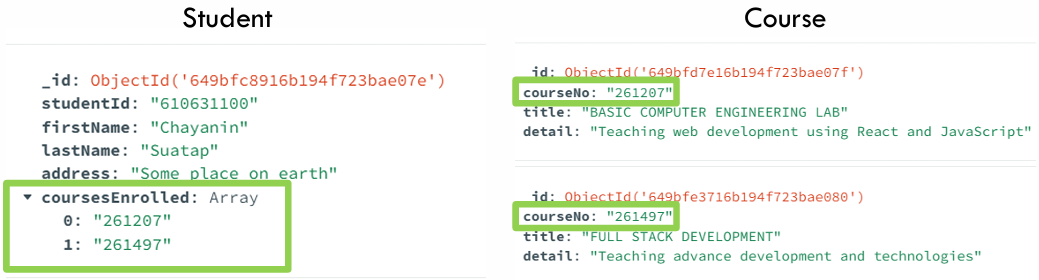

NoSQL Schema #1 : Many-to-Many

Option 1 - Embedding a list of Courses in a Student document

NoSQL Query #1 : Many-to-Many

e.g., "Which Students enroll in my Course"

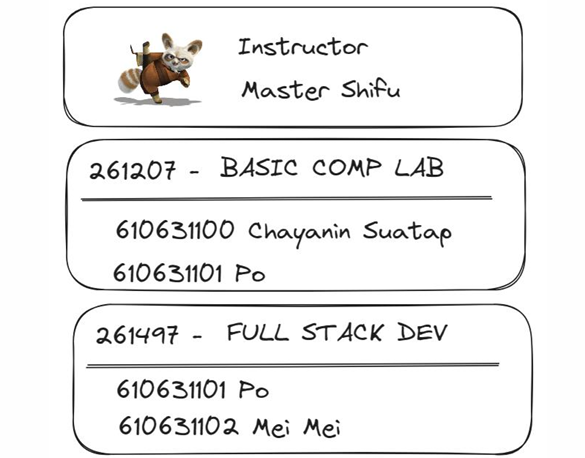

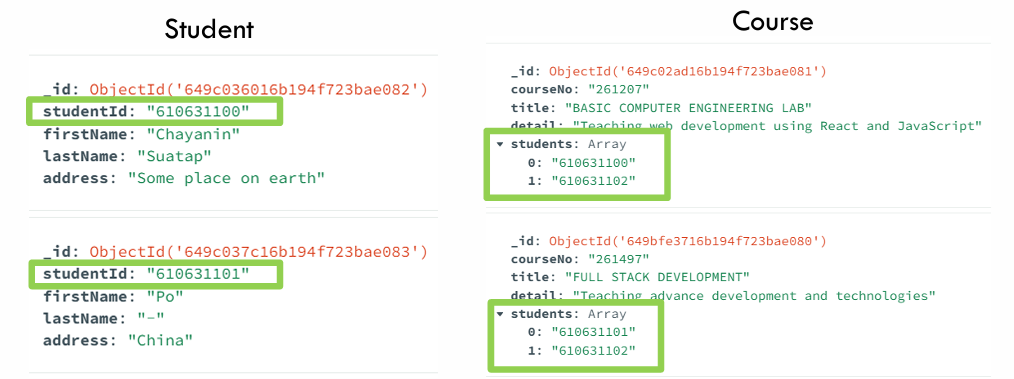

NoSQL Schema #2 : Many-to-Many

Option 2 - Embedding a list of Students in a Course document

What if we want both?

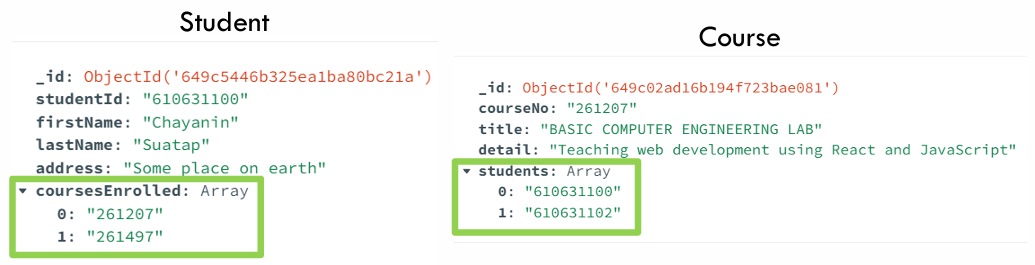

NoSQL Schema #3 : Many-to-Many

Option 3 - Embedding a list of References in both documents

• Pros : query efficiently from both sides
• Cons : duplicate data, need to update on both side

Summary : Many-to-Many

SQL

• Create three tables with foreign keys and JOIN them together

NoSQL

• Choose which side of document to be embedded by determining which side has more queries
• Embedded on both sides and apply data mutation very carefully

Data Integrity

SQL Data Integrity

Foreign Key

• Keeps data consistent across related tables
• Blocks invalid insertion/update, prevents orphaned records

SQL Data Integrity

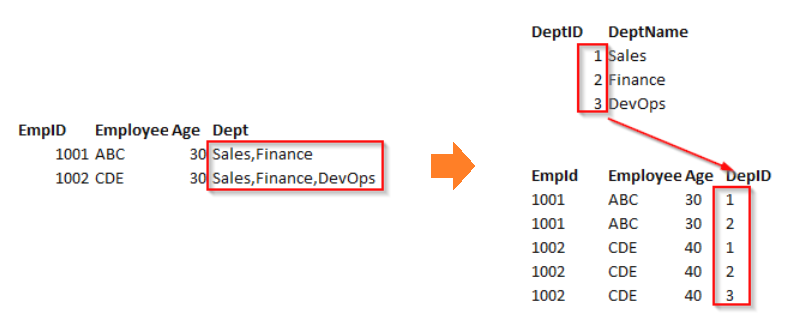

Data Normalization

• The process of restructuring a relational database
• Helps reducing data redundancy (multiple copies of the same data)
• Improves data integrity by avoiding updating data in multiple locations

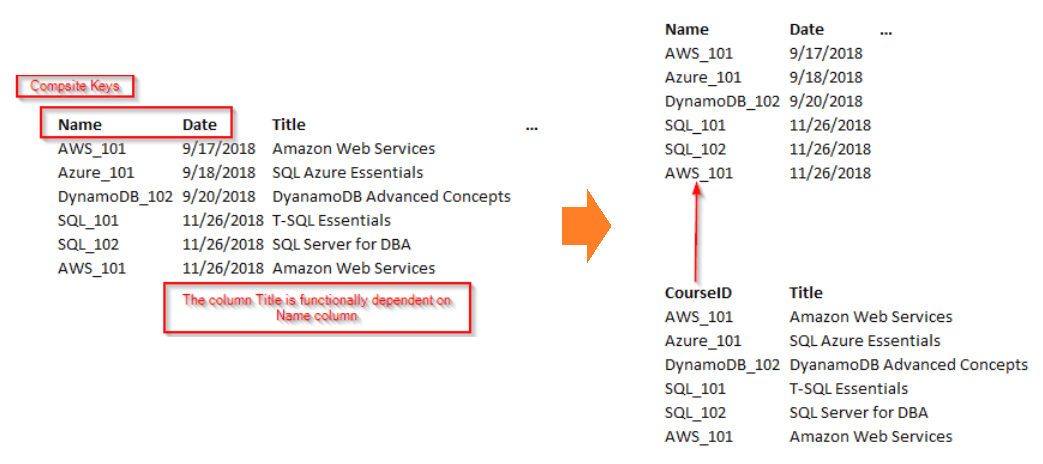

Data Normalization

Data Normalization

How far to take normalization in SQL database?

• This question is opinion-based
• Query more tables is typically slower (due to more JOIN operations)
• Normalize as far as necessary to remove data integrity issues
  • Potential data duplication or missing data

Data normalization in NoSQL database

• NoSQL prefers denormalization
  • Accept data duplication to improve querying speed
  • Insert / Update / Delete must be performed carefully
• No foreign key mechanism built-in

Schema and Data Type Safety

Schema validation

• SQL has built-in schema and data type validation (duhh!!!)
• NoSQL database usually allows you to annotate and validate JSON documents
  • MongoDB uses JSON schema to specify validation rules when creating a collection

Schema validation

• Some ORMs (Object-Relational Mappin) can be used to defines a schema for NoSQL
• ORM helps validating data during software development
  • Prisma ORM defines a schema for MongoDB, providing type safety
  • Drizzle does not natively support MongoDB

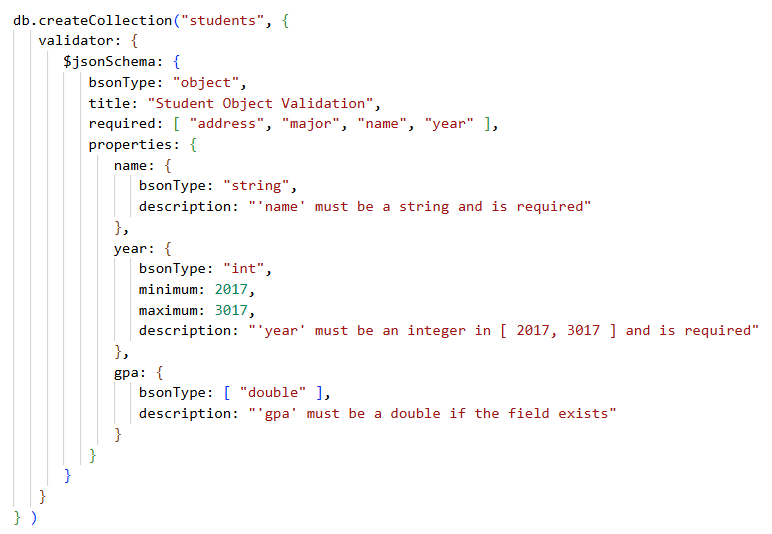

MongoDB JSON Schema

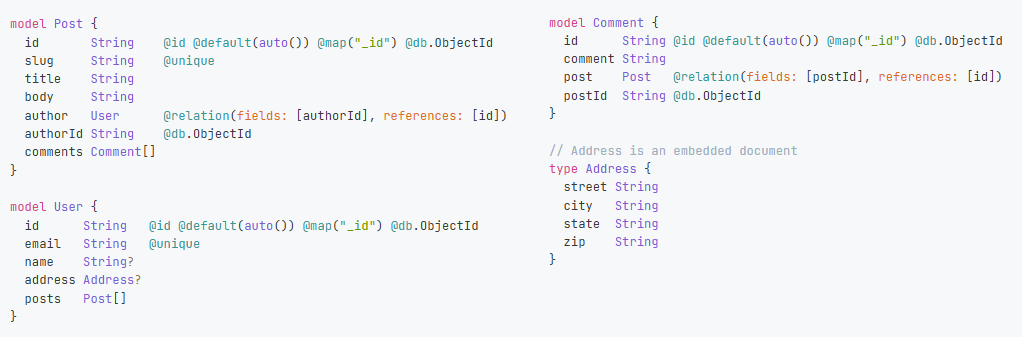

Prisma ORM Schema

Common Database Patterns

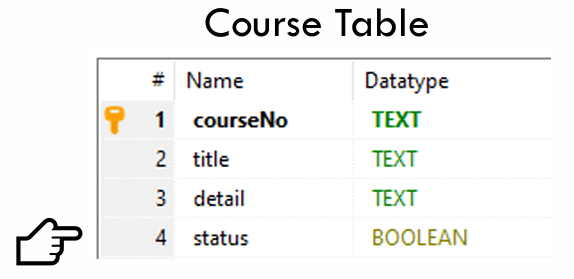

Soft DELETE

To delete a row, marks the status field as false.

Soft DELETE

Pros

• Able to view history of data
• Sensitive data remains in the database
• Undeletion is possible

Cons

• Every query must has where status = true condition
• Size of table / collection is larger

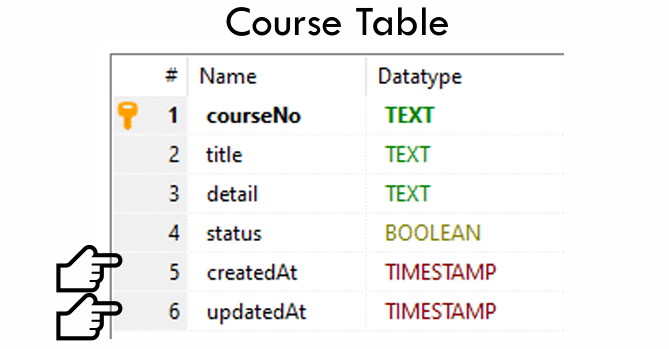

Created-At and Updated-At

"Tracking when a row was created or updated"

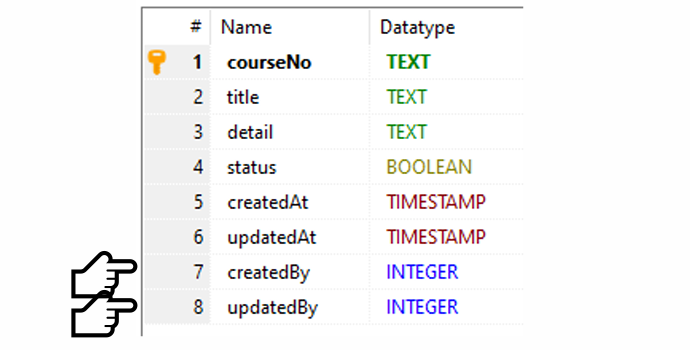

Created-By and Updated-By

"Tracking who has interacted with the data"

NoSQL Pattern

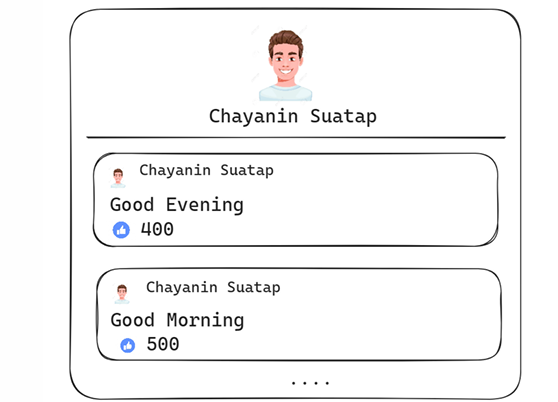

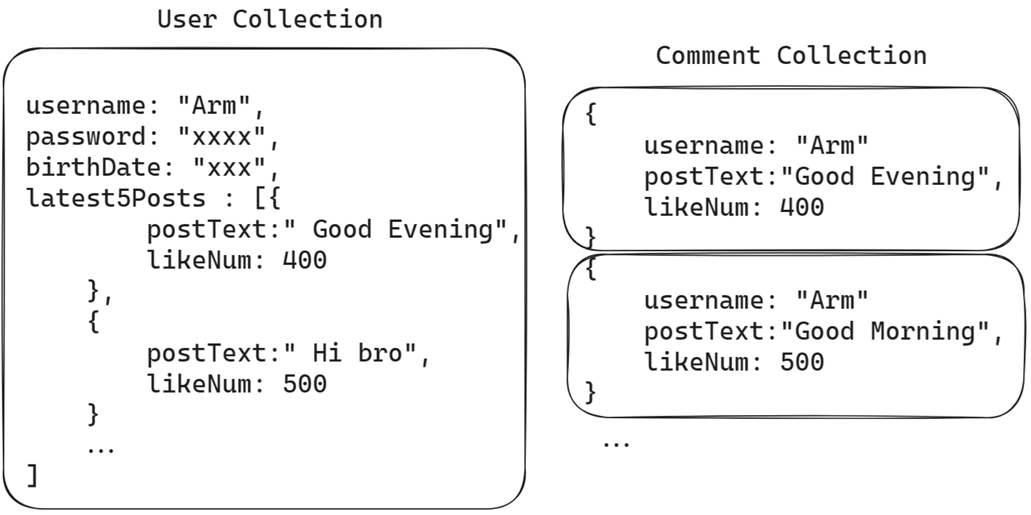

Example: Social media latest [#] posts

"Get the latest [#] Posts of specified User in one query"

Example: Social media latest [#] posts

Database Index

What is Index?

• A data structure that improves the speed of data retrieval operations on database table
• Index costs additional writes and storage space to maintain the index data structure

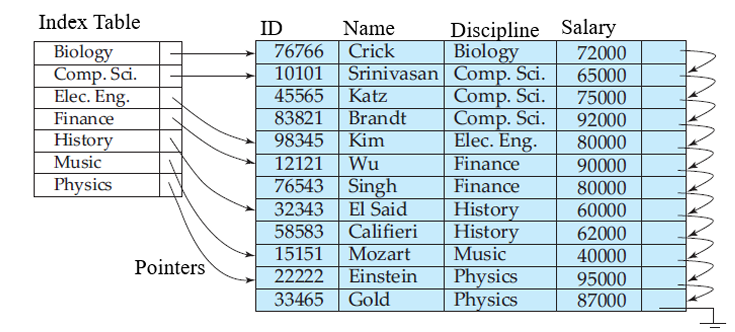

Index Example

"Get instructors with Finance discipline"

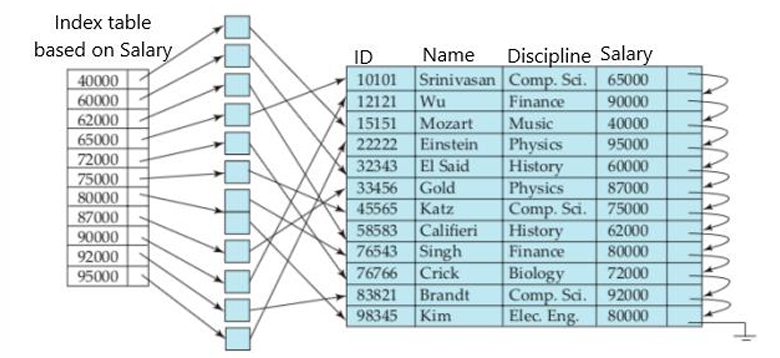

Index Example

"Get instructors ordered by Salary"

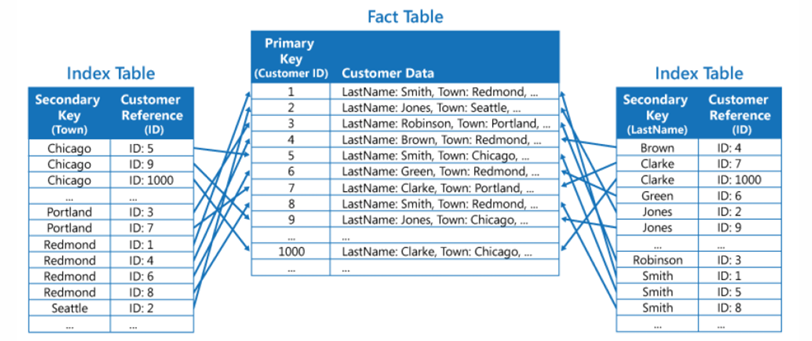

Composite Index

"Get Customers ordered by Name and Town"

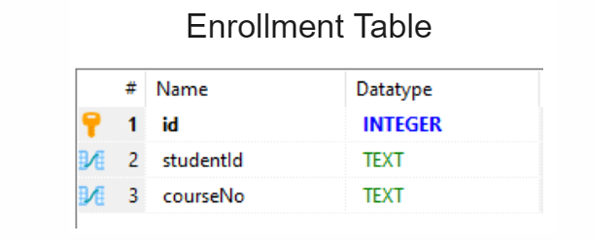

Unique Index

• Unique index is used to ensure data uniqueness
• e.g., To ensure that a Student cannot enroll the same Course twice
  • Create a compound unique index containing studentId and courseNo

Index Summary

Pros

• Query data more efficiently, speed up SELECT operation

Cons

• Index must be rebuilt when INSERT / UPDATE / DELETE, hence slower
• Index requires addtional storage space on database

Unique Identifier

• A value that distinquishes a specific record (row, document) from others within the table
• Prevent ambiguity and enabling efficient data retrieval and management

Auto Increment ID

SQL database only

• MySQL uses the AUTO_INCREMENT keyword

CREATE TABLE table_name (
    id INT AUTO_INCREMENT PRIMARY KEY,
    column2 VARCHAR(255),
    column3 INT,
    -- Add other columns as needed
);

Auto Increment ID

• PostgreSQL uses the SERIAL or SEQUENCE keywords

CREATE TABLE my_table (
    id SERIAL PRIMARY KEY,
    name VARCHAR(255)
);

CREATE SEQUENCE my_sequence START 100 INCREMENT 5;

CREATE TABLE another_table (
    id INTEGER NOT NULL DEFAULT nextval('my_sequence'),
    description TEXT
);

ALTER SEQUENCE my_sequence OWNED BY another_table.id;

UUID

Universally Unique ID

• Not able to find the same UUID in the same Universe
• The term Globally Unique Identifier (GUID) is also used
  • Used mostly in Microsoft systems
• UUID 4 is widely used

UUID v4

• The most commonly used and recommended for general-purpose applications
  • Due to its simplicity and reliance on pseudo-random number generator
• 128-bit value (32-Hexadecimal)
• Formated as 5-group of characters (8-4-4-4-12)

c9b135f6-f163-40d6-8483-0a57780e3f17

What to use as Primary Keys?

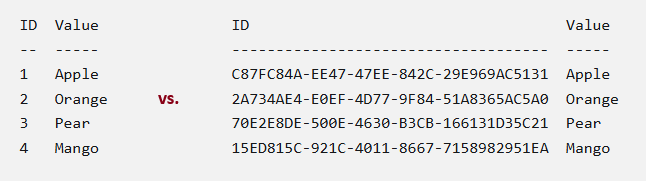

Auto-increment IDs vs. UUIDs ?

UUID Pros and Cons

Pros

• Unique across every table, database, every server
• Easy merging of records form different databases
• Easy distribution of databases across multiple servers, aka. sharding

Cons

• Larger than tradition typically ID
• This can have serious performance and storage implications
• May be difficult to debug
  ... where userid = ‘{c9b135f6-f163-40d6-8483-0a57780e3f17}’

MongoDB Object ID

• Insert automatically in every document
• Embedded timestamp inside the ID > Can be used to sort as create date

[
  {
    _id: ObjectId("62bb413014b92d148400f7a5"),
    name: "Alice",
    year: 2019,
    major: "History",
    gpa: 3,
    address: { city: "NYC", street: "33rd Street" },
  },
];

Database Encryption

Most small-to-medium setups

Database Encryption

• Stores data in unreadable ciphertext using cryptographic algorithm
• Ensure data confidentiality and complying with privacy regulations
  • GDPR, PDPA, HIPPA, and PCI DSS
• Primary methods
  • Transparent Data Encryption (TDE)
  • Column/Cell Encryption
  • Application-level Encryption

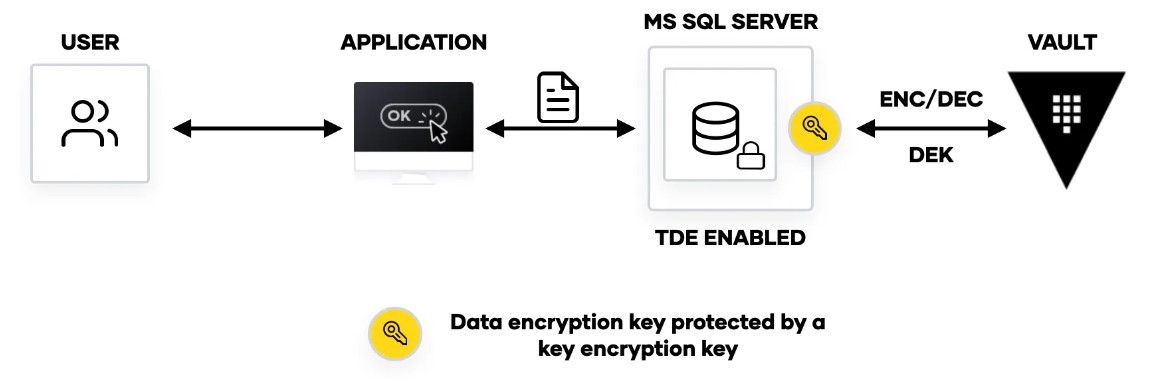

Transparent Data Encryption

• Encrypts database files at disk level (data at rest)
• Decryption is handled as data is read into memory.
• Oracle TDE, Microsoft SQL Server TDE, PostgreSQL+pg_tde
• Data Encryption Key (DEK) is a symmetric key

Column/Cell Encryption

• Encrypts only specific, highly sensitive data fields
• Can impact database performance during queries
• PostgreSQL + pgcrypto
  • Password hashing (using bcrypt)
  • Symmetric/asymmetric OpenPGP encryption
  • Random data or UUID generation

Applicaton-level Encryption

• Data is encrypted by the application before writing to the database
• Database never holds the unencrypted data or the encryption key
• Guarantees end-to-end security

Tutorial

• Database Design Tutorial
